| GF27.19-P-5103G | AT control module, position/task/design/function | 17.6.97 |
| |||||||||||||||

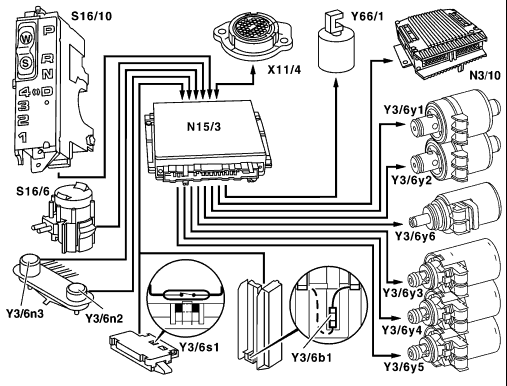

| Input and output signals
N3/10 Engine control module N15/3 ETC control module S16/6 Kickdown switch S16/10 Gear identification switch X11/4 Data link connector Y3/6b1 Transmission oil temperature sensor Y3/6n2 RPM sensor 2 Y3/6n3 RPM sensor 3 Y3/6s1 Starter interlock contact Y3/6y1 Modulating pressure regulating solenoid valve Y3/6y2 Shift pressure regulating solenoid valve Y3/6y3 1-2 and 4-5 shift solenoid valve Y3/6y4 3-4 shift solenoid valve Y3/6y5 2-3 shift solenoid valve Y3/6y6 Torque converter lockup PWM solenoid valve Y66/1 Reverse/parking lock valve |
![]() | |
| P27.19-2035-06 |
| CAN data bus
N3/10 Engine control module N15/3 ETC control module N47 Traction system control module |
![]() | |
| P27.19-2036-12 |
| Position
Models 129, 170, 202, 208 In the right footwell under the step plate. Models 140, 210 Right control module box in the engine compartment. Task The ETC control module (N15/3) measures the current operating state of the vehicle and controls all shifting operations taking the ease of shifting and driving situation into consideration. This is done by receiving, converting and sending digital and analog signals. Input signals: Starter interlock contact (Y3/6s1)
RPM sensor 2 (Y3/6n2)
RPM sensor 3 (Y3/6n3)
Transmission oil temperature sensor (Y3/6b1)
Kickdown switch (S16/6)
Gear identification switch (S16/10)
W/S program switch (S16/10s2)
Input and output signals: Data link connector (X11/4)
|
Output signals:
Reverse/parking lock valve (Y66/1)
P/N selector lever position for engine control module (N3/10)
(only when recognizing selector lever position "P" or "N" at the gear identification switch (S16/10) and at the starter interlock contact (Y36s1) In addition there is a connection via the engine compartment bus to the: engine control module (N3/10)
traction system control module (N47)
The ETC control module (N15/3) controls the solenoid valves for modulating and shift pressure and for shifting gears. Function The pressure required is calculated from all input signals, adjusted to the torque to be transferred. The following information from other systems is then processed: Engine control module (ME-SFI) (N3/10) Engine torque
Engine speed
Accelerator pedal position
Gear shift
Engine status
|
Traction system control module (N47)
Wheel speeds
Gear shift
Traction status |
The following information is output via CAN -C:
Engine control module (ME-SFI) (N3/10) Kickdown switch (S16/6)
Engaged drive mode
Traction system control module (N47) Gear ratio
Speeds |
| Location / task / design / function of transmission range identification switch | GF27.19-P-5101G | ||
| R/P lock, location/task/design/function | GF27.60-P-5103G | ||
| Location / task / design / function of kickdown switch | GF27.19-P-5105G | ||
| Location / task / design / function of starter interlock contact | GF27.19-P-5106G | ||
| Temperature sensor, position/task/design/function | GF27.19-P-5108G | ||
| Location / task / design / function of shift pressure regulating solenoid valve | GF27.19-P-5109G | ||
| Location / task / design / function of modulating pressure regulating solenoid valve | GF27.19-P-5110G | ||
| Upshift / downshift solenoid valve, arrangement / purpose / design / function | GF27.19-P-4006G | ||
| Location / task / design / function of PWM solenoid valve, torque converter lockup clutch | GF27.19-P-5112G | ||
| Speed sensor, location/task/function | GF27.19-P-5127G |
