GF80.30-P-0002A

GF80.30-P-0002A

Infrared remote control for central locking with drive authorization system stage X, function

6.5.96

MODEL		129, 140, 210 as of 1.6.96 with CODE (491) USA version
MODEL		202 as of 1.8.96 with CODE (491) USA version

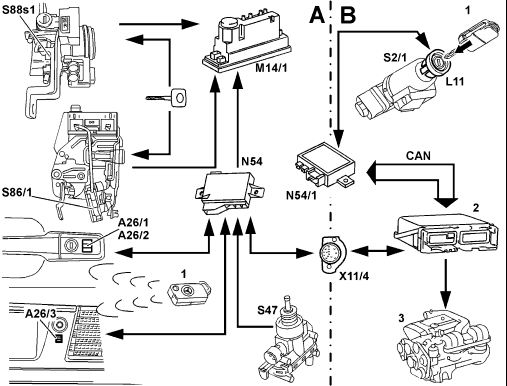

System interlinkage, model 129 A Infrared remote control for central locking (RCL) B Drive authorization stage X (engine control release via transponder) A26/1 Left front door IR receiver A26/2 Right front door IR receiver A26/3 Trunk lid IR receiver CAN Controller area network L11 Transponder coil N54 RCL control module N54/1 IR DAS control module M14/1 Supply pump (CL) S2/1 Ignition/starter switch S86/1 Left front door lock switch S88s1 ATA/CF microswitch X11/4 Data link connector (DTC readout) 1 IR remote control key with transponder 2 Engine control module 3 Engine
		P80.30-0364-06

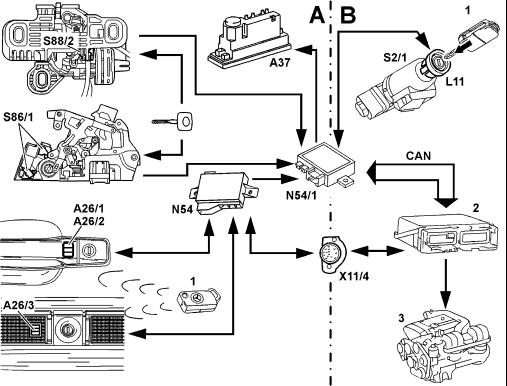

System interlinkage, model 140 A Infrared remote control for central locking (RCL) B Drive authorization stage X (engine control release via transponder) A26/1 Left front door IR receiver A26/2 Right front door IR receiver A26/3 Trunk lid IR receiver A37 PSE control module CAN Controller area network L11 Transponder coil N54 RCL control module N54/1 IR DAS control module S2/1 Ignition/starter switch S86/1 Left front door lock switch S88/2 Trunk lid lock switch (CF) X11/4 Data link connector (DTC readout) 1 IR remote control key with transponder 2 Engine control module 3 Engine
		P80.30-0337-06

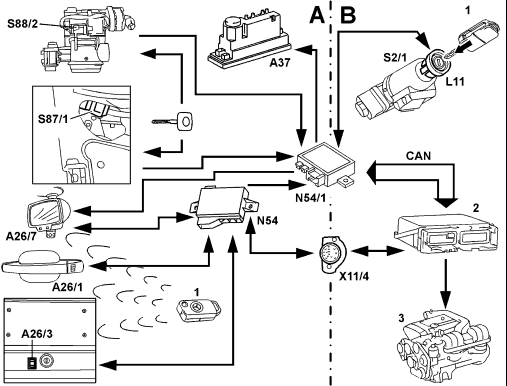

System interlinkage, model 202 A Infrared remote control for central locking (RCL) B Drive authorization stage X (engine control release via transponder) A26/1 Left front door IR receiver A26/3 Trunk lid IR receiver A26/7 RCL receiver (interior rearview mirror) A37 PSE control module CAN Controller area network L11 Transponder coil N54 RCL control module N54/1 IR DAS control module S2/1 Ignition/starter switch S87/1 Right front door lock switch (CFT) S88/2 Trunk lid lock switch (CF) X11/4 Data link connector (DTC readout) 1 IR remote control key with transponder 2 Engine control module 3 Engine
		P80.30-0335-06

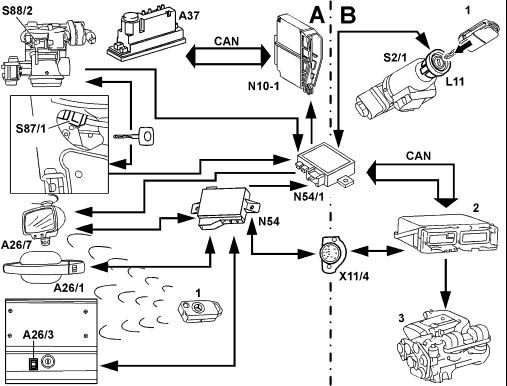

System interlinkage, model 210 A Infrared remote control for central locking (RCL) B Drive authorization stage X (engine control release via transponder) A26/1 Left front door IR receiver A26/3 Trunk lid IR receiver A26/7 RCL receiver (interior rearview mirror) A37 PSE control module CAN Controller area network L11 Transponder coil N10-1 Multi-function control module N54 RCL control module N54/1 IR DAS control module S2/1 Ignition/starter switch S87/1 Right front door lock switch (CFT) S88/2 Trunk lid lock switch (CF) X11/4 Data link connector (DTC readout) 1 IR remote control key with transponder 2 Engine control module 3 Engine
		P80.30-0336-06

Identifying characteristics
Coil for transponder on steering lock.

Components
The infrared remote control for central locking (RCL) with drive authorization stage X consists of the following individual components:

- Key with transponder (alternating code)
Transponder

coil with electric chip integrated into key
- Three infrared receivers: front left door, front right door, trunk lid (W129/140), interior rearview mirror (W202/210)
- Infrared RCL control module

- Infrared DAS control module
- Coil for transponder attached to steering lock
- Engine control module

The following functions are executed by the system:

- Infrared remote control for central locking
- Release of drive authorization system

Drive authorization is independent of the central locking status.


	Function of infrared remote control for central locking (RCL)		GF80.30-P-0004B
	Function of drive authorization system, stage X		GF80.30-P-2002A
	Infrared remote control with drive authorization system stage X, location of components		GF80.30-P-0002-01A

GF80.30-P-2002A

GF80.30-P-2002A

Function of drive authorization system stage X

6.5.96

MODEL		129, 140 as of 1.6.96,
		210 / (except 210.081 /281) as of 1.6.96 up to 28.2.97 with CODE (491) USA version
MODEL		202 as of 1.8.96 up to 31.5.97 with CODE (491) USA version

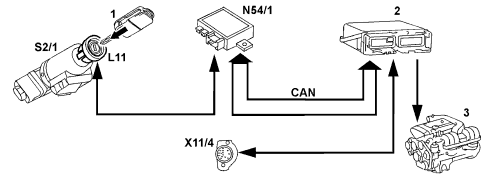

System linkage CAN Controller area network L11 Transponder coil N54/1 IR DAS control module S2/1 Ignition/starter switch X11/4 Data link connector (DTC readout) 1 Infrared remote control key with transponder 2 Engine control module 3 Engine
		P80.30-0290-04

If a valid transponder signal is recognized by the infrared DAS control module (N54/1) after switching on the ignition, the engine control is released.


	Releasing engine control		GF80.30-P-3004A

GF80.30-P-4001A

GF80.30-P-4001A

Remote control key with transponder, purpose/design/function

1.2.96

MODEL		129, 140, 210 (except , 210.072) as of 1.6.96,
		210 / (except 210.2 /081) as of 1.6.96 up to 28.2.97
MODEL		170,
		210.072 /2 (except , 210.281) up to 28.2.97
MODEL		202 (except 202.083) as of 1.8.96 up to 31.5.97
MODEL		202.083 up to 31.5.97


Purpose	Locking and unlocking vehicle via central locking. Releasing drive authorization system.
Design	The IR remote control key contains a transponder for the drive authorization system, batteries for supplying power to the IR remote control as well as a mechanical key.
Function	When the remote control button is pressed an infrared light beam is transmitted from the IR remote control key with transponder to the infrared remote control (RCL) receiver (interior rearview mirror) (A26/7) at which the key is pointed on models 129/140/202/210 or at the RCL receiver (roof frame) (A26/9) on model 170. only The left front door IR receiver (A26/1), right front door IR receiver (A26/2), trunk lid IR receiver (A26/3) are actuated on models 129/140 or the RCL receiver (interior rearview mirror) (A26/7) on models 202/210. This IR signal transfers the code stored in the IR remote control key. This code changes each time the key is actuated. Actuation switches circuit 15 ON
Transponder, purpose/design/function/location		GF80.30-P-4006A

GF80.30-P-4003-01B

Purpose of drive authorization system (DAS) infrared control module

FBS X

The purpose of the IR DAS control module is described below:

a) Infrared remote control for central locking
- Receive and evaluate signals from lock switches 1 and 2 from infrared remote control (RCL) module, not model 129

After recognition of valid IR Signal
- Actuation of - Central locking (CL), not model 129
- Anti-theft alarm (ATA), not model 129
- Convenience feature (CF), not model 129
- Remote trunk release (RTR), only
models 140 and 202/210 sedan

- Read in and evaluate signals from mechanical lock switches (SN1-unlock, SN2-lock), not model 129.

b) Drive authorization stage X
- Control of transponder coil on ignition/starter switch
- Read in and evaluate transponder signal
- Release engine control module via CAN when transponder code is valid

The IR DAS control module (N54/1) evaluates the transponder data received and, when valid, releases the engine control via the CAN bus.

GF80.30-P-0002-01A

Infrared remote control for central locking with drive authorization system stage X, location of components

Location of components, model 129 with HFM-SFI engine control module A26/1 Left front door IR receiver A26/2 Right front door IR receiver A26/3 Trunk lid IR receiver L11 Transponder coil (on ignition/starter switch) N3/4 Engine control module (HFM-SFI) N54 RCL control module N54/1 IR DAS control module (behind instrument cluster) 1 IR remote control key with transponder
		P80.30-0342-06

Location of components, model 140 with HFM-SFI engine control module (illustrated on sedan) A26/1 Left front door IR receiver A26/2 Right front door IR receiver A26/3 Trunk lid IR receiver L11 Transponder coil (on ignition/starter switch) N3/4 Engine control module (HFM-SFI) N54 RCL control module N54/1 IR DAS control module (behind instrument cluster) 1 IR remote control key with transponder
		P80.30-0339-06

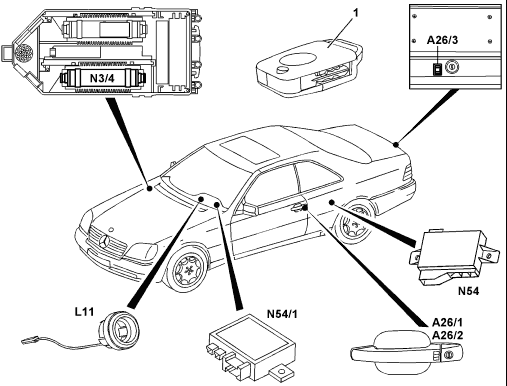

Location of components, model 140 with HFM-SFI engine control module (illustrated on coupe) A26/1 Left front door IR receiver A26/2 Right front door IR receiver A26/3 Trunk lid IR receiver L11 Transponder coil (on ignition/starter switch) N3/4 Engine control module (HFM-SFI) N54 RCL control module N54/1 IR DAS control module (behind instrument cluster) 1 IR remote control key with transponder
		P80.30-0343-06

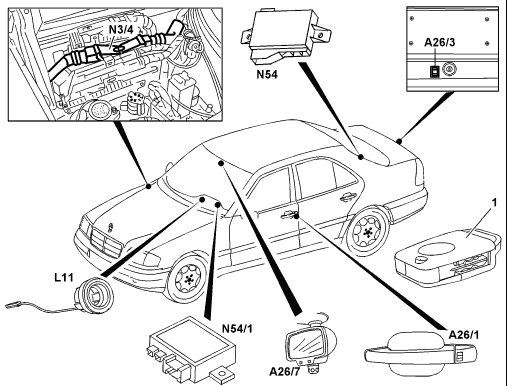

Location of components, model 202 with HFM-SFI engine control module (illustrated on sedan) A26/1 Left front door IR receiver A26/3 Trunk lid IR receiver A26/7 RCL receiver (interior rear view mirror) L11 Transponder coil (on ignition/starter switch) N3/4 Engine control module (HFM-SFI) N54 RCL control module N54/1 IR DAS control module (behind instrument cluster) 1 IR remote control key with transponder
		P80.30-0341-06

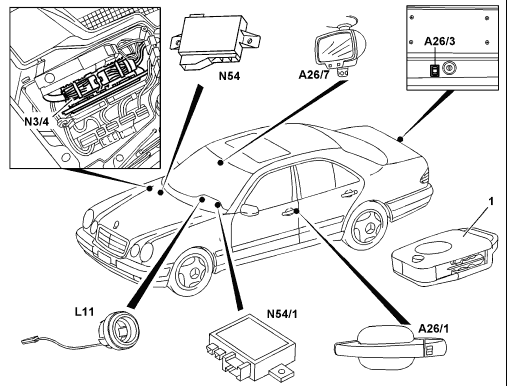

Location of components, model 210 with HFM-SFI engine control module (illustrated on sedan) A26/1 Left front door IR receiver A26/3 Trunk lid IR receiver A26/7 RCL receiver (interior rear view mirror) L11 Transponder coil (on ignition/starter switch) N3/4 Engine control module (HFM-SFI) N54 RCL control module (HFM-SFI) N54/1 IR DAS control module (behind instrument cluster) 1 IR remote control key with transponder
		P80.30-0340-06

GF80.30-P-4006A

GF80.30-P-4006A

Transponder, location/purpose/design/function

31.1.96

MODEL		129, 140, 210 (except , 210.072) as of 1.6.96,
		210 / (except 210.2 /081) as of 1.6.96 up to 28.2.97
MODEL		170,
		210.072 /2 (except , 210.281) up to 28.2.97
MODEL		202 (except 202.083) as of 1.8.96 up to 31.5.97
MODEL		202.083 up to 31.5.97


	Purpose	Transferring content of data block to DAS infrared control module. Storing data transmitted from DAS infrared control module.
	Design	The transponder consists of an electronic chip and a coil.
	Function	After switching on the ignition, the transponder is supplied with power by the DAS infrared control module via the coil on the steering wheel lock. The DAS infrared control module transfers a password and the number of the data block to be read out to the transponder. The latter transfers the contents of the data block to the control module. If valid the engine control is released. Then the contents of the data block is written over.
	Location	In IR remote control key and in mechanical key.

GF80.30-P-4007A

GF80.30-P-4007A

Transponder coil, location/purpose/function

31.1.96

MODEL		129, 140, 210 (except , 210.072) as of 1.6.96,
		210 / (except 210.2 /081) as of 1.6.96 up to 28.2.97
MODEL		170,
		210.072 /2 (except , 210.281) up to 28.2.97
MODEL		202 (except 202.083) as of 1.8.96 up to 31.5.97
MODEL		202.083 up to 31.5.97


	Purpose	The transponder coil (L11) serves as the data link between the transponder and DAS infrared control module (N54/1).
	Function	After the ignition is switched ON the coil for the transponder (L11) is actuated by the DAS infrared control module (N54/1) supplying power to the transponder in the key also containing a coil inductively via the resulting field.
	Location	Plugged on to the ignition/starter switch.
