| GF07.61-P-0001-01HM | Motor electronics (ME-SFI) fuel injection and ignition system arrangement of components | Model 215, 220 with engine 113.991 | |

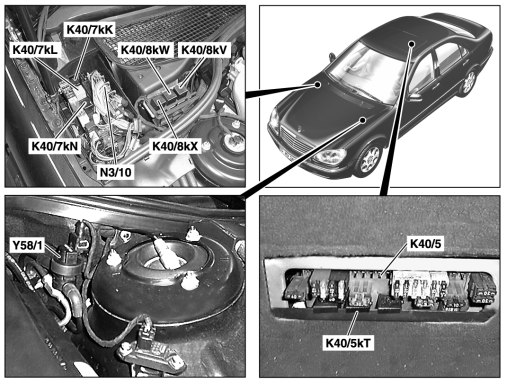

| K40/5 Rear fuse and relay module
K40/5kT Fuel pump relay (Socket T) K40/7kK Engine electronics and chassis relay (relay position K) K40/7kL Starter relay (contact position L) K40/7kN Air pump relay (relay position N) K40/8kV Motronic relay K40/8kW Charge air relay (circulation pump) K40/8kX Intank fuel pump relay N3/10 ME-SFI control unit Y58/1 Purge control valve |
 | |
| P07.61-2837-06 |

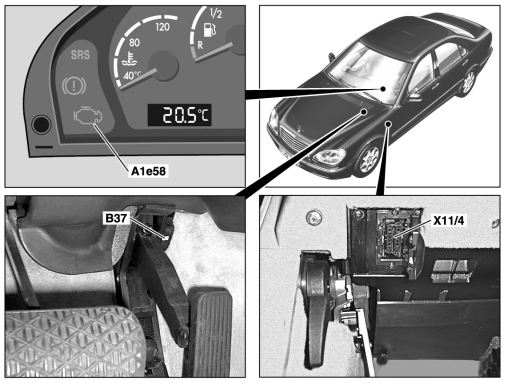

| A1e58 Engine diagnosis malfunction indicator lamp
B37 Accelerator pedal sensor X11/4 Datalink connector |
 | |
| P07.61-2836-06 |

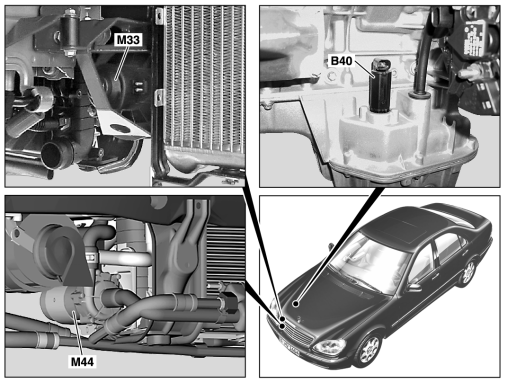

| B40 Oil sensor (oil level, temperature and quality)
M33 AIR pump M44 Charge air cooler circulation pump |
 | |
| P07.61-2835-06 |

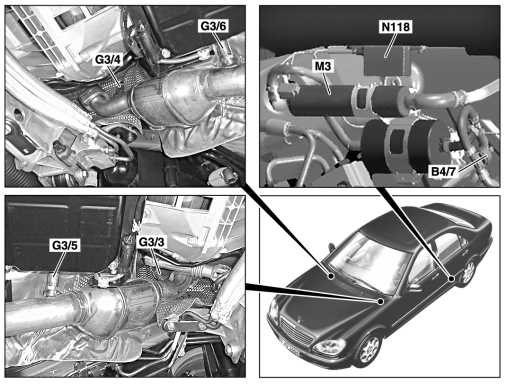

| B4/7 Fuel pressure sensor
G3/3 Left O2 sensor upstream of TWC G3/4 Right O2 sensor, upstream of TWC G3/5 Left O2 sensor upstream of TWC G3/6 Right O2 sensor, upstream of TWC M3 Fuel pump (FP) N118 Fuel pump control unit |
 | |
| P07.61-2834-06 |

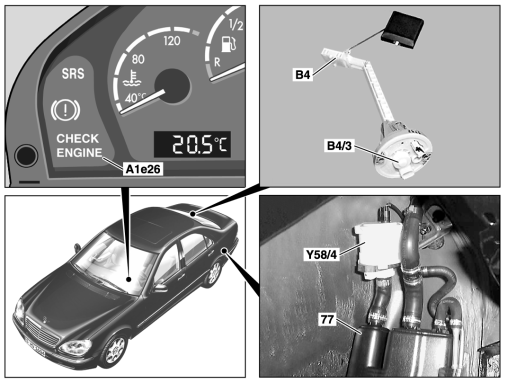

| 77 Activated charcoal canister
A1e26 "CHECK ENGINE" MIL
B4 Fuel system sensor B4/3 Fuel tank pressure sensor
Y58/4 Activated charcoal canister shutoff valve |
 | |
| P07.61-2838-06 |
