GF07.61-P-3025M | O2 Sensor heater, function | 1.7.03 |
|
Illustrated model 215, 220, 230, 240

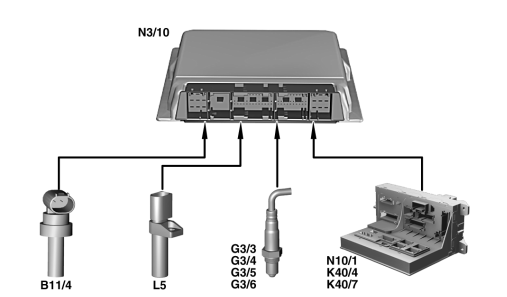

B11/4 Coolant temperature sensor G3/3 Left O2 sensor upstream TWC G3/4 Right O2 sensor upstream TWC G3/5 Left O2 sensor downstream TWC G3/6 Right O2 sensor downstream TWC K40/4 Passenger-side fuse and relay module (model 230) K40/7 Passenger-side right front fuse and relay module (Model 215, 220) L5 Crankshaft position sensor N3/10 ME-SFI control unit N10/1 Driver-side SAM control unit with fuse and relay module (model 240) |
![]() | |
P07.61-2920-05 |
The purpose of the O2 sensor heater is to rapidly heat up the O2 sensors to their operating temperature while preventing damage to the ceramic material as a result of controlled heating power.
The sensor heater is actuated by the engine control unit through pulsed ground The power output of the sensor heater at operating temperature is approx. 7 watt. The voltage for the sensor heater is supplied by the: ![]() ![]() ![]() Model 240. |
In the cold state, the current is increased approximately by a factor of 4. At coolant temperatures below approx. 20 °C and at high engine speeds the sensor heater is switched off.
Each sensor heater has its own, short-circuit proof output stage in the engine control unit with diagnosis. As a protection for the ceramic, the sensor temperature upstream of TWC is limited to approx. 350 °C in the condensation phase after a cold start. The temperature is subsequently controlled to approx. 700 °C. For this purpose, the exhaust temperature is determined using various engine operating data and the sensor heated accordingly. Different values apply to the O2 sensor heaters downstream TWC. |
