22 Variable flap
A Intake air when variable flap open
B intake air when variable flap closed
C to engine
D Intake air from air cleaner
| GF09.20-P-3102A | Intake manifold, location/task/design/function | 15.5.97 |
| |||||

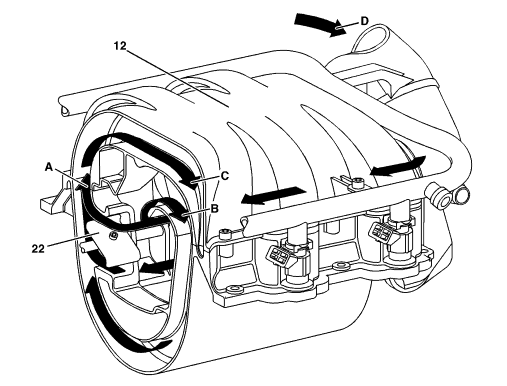

| 12 Variable intake manifold
22 Variable flap A Intake air when variable flap open B intake air when variable flap closed C to engine D Intake air from air cleaner |
| |
| P09.20-0299-06 |
| Intake manifold, location | GF09.20-P-3102-01A | ||
| Intake manifold, task | Optimizing engine torque curve by means of two different intake manifold lengths | ||
| Intake manifold, design | GF09.20-P-3102-03A | ||
| Intake manifold, function | GF09.20-P-3102-02A |
