GF09.40-P-3100M

GF09.40-P-3100M

Turbocharger, location/task/function

2.6.02

ENGINE 275.950 /980 in MODEL 215

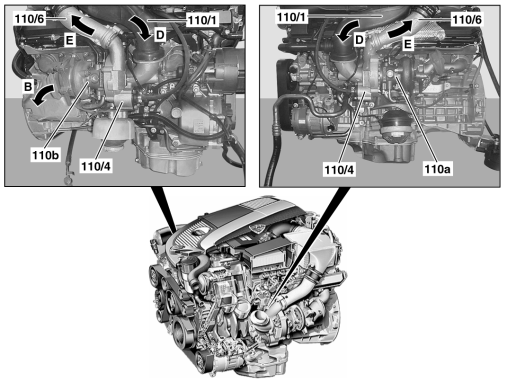

110/1 Suction line/air cleaner housing (to compressor housing)
110/4 Deceleration air valve
110/6 Charge air pipe (from compressor housing to the respective charge air cooler)

110a Left turbocharger
110b Right turbocharger

B Exhaust
D Clean air (downstream of air cleaner)
E Charge air

P07.61-2733-06

Turbocharger, location In each cylinder bank a turbocharger out of steel casting (Biturbo) is built-in. The turbine housing is integrated in the exhaust manifold.

Turbocharger task Building up the boost pressure for each engine operating state.

Turbocharger, function GF09.40-P-3100-01M

110/1 Suction line/air cleaner housing (to compressor housing) 110/4 Deceleration air valve 110/6 Charge air pipe (from compressor housing to the respective charge air cooler) 110a Left turbocharger 110b Right turbocharger B Exhaust D Clean air (downstream of air cleaner) E Charge air
		P07.61-2733-06

Turbocharger, location	In each cylinder bank a turbocharger out of steel casting (Biturbo) is built-in. The turbine housing is integrated in the exhaust manifold.
Turbocharger task	Building up the boost pressure for each engine operating state.
Turbocharger, function		GF09.40-P-3100-01M
