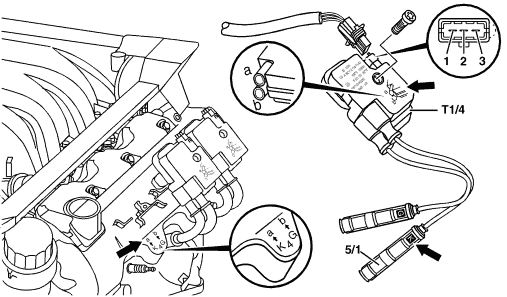

5/1 Spark plug connector
T1/4 Ignition coil cylinder 4
(Dual ignition coil)
3-pin connector
1 Circuit 1b
2 circuit 15 fused
3 Circuit 1a
A, B High voltage connection
Arrows Assignment of high voltage connection/ spark plug connector/cylinder
| GF15.10-P-3102A | Ignition coils, location/task/design/function | 19.10.96 |
| |||||
| Shown on ENGINE 112
5/1 Spark plug connector T1/4 Ignition coil cylinder 4 (Dual ignition coil) 3-pin connector 1 Circuit 1b 2 circuit 15 fused 3 Circuit 1a A, B High voltage connection Arrows Assignment of high voltage connection/ spark plug connector/cylinder |
| |
| P15.10-0231-05 |
| Ignition coils, location | GF15.10-P-3102-01A | ||
| Ignition coils, task | Supplying adequate ignition energy in all operating conditions for the particular ignition circuit. | ||
| Ignition coils, design | One double ignition coil for each cylinder. Attached to cylinder head cover. | ||
| Ignition coils, function | GF15.10-P-3102-02A |
