ENGINE   275.950 /980 in MODEL 215

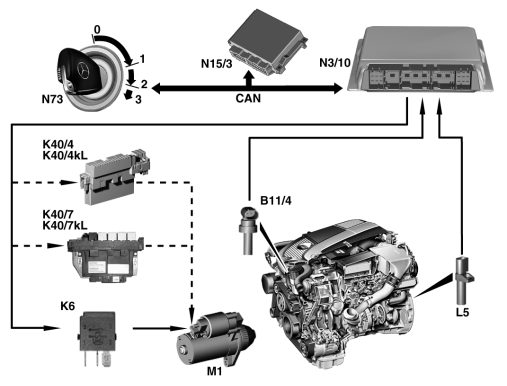

Illustrated model 215, 220, 230, 240 B11/4 Coolant temperature sensor K6 Starter relay (model 240) K40/4 Passenger-side fuse and relay module (model 230) K40/4kL starter relay (model 230) K40/7 Right front fuse and relay module (model 215, 220) K40/7kL Starter relay (model 215, 220) L5 Crankshaft position sensor M1 Starter N3/10 ME-SFI control unit N15/3 ETC [EGS] control unit (transmission 722.6) N73 EIS [EZS] control unit CAN Data bus
		P07.61-2929-06

Starter control takes over actuation of the starter (M1) and interrupts the circuit (circuit 50) to the starter solenoid switch (starter deactivation) after reaching the engine start speed. By actuating the ignition starter switch at the electronic ignition switch control unit (N73), from position "2" (ignition ON) to position "3" (START), starter detection is performed by the ME-SFI control unit (N3/10). The solenoid switch of the starter is actuated via the starter relay by the ME-SFI control unit. The voltage supply to the starter relay (coil) is supplied through circuit 87. The starter relay is actuated by the ME-SFI control unit with a ground signal.

If the starting procedure has started, the actuation of the ignition starter switch from position "3" back into position "2" no longer has any influence (touch start). When reaching the engine start speed of 400 up to 700 rpm or a starting time of approx. 5 to 40 seconds (dependent on the engine temperature), the ME-SFI control unit interrupts the negative activation to the starter relay and therefore ends the starting procedure.

	ME-SFI control unit, location/task/design/function		GF07.61-P-5000M
	Voltage supply of ME-SFI control unit, function		GF07.61-P-5001M
	Crankshaft position sensor, location/task/design/function		GF07.04-P-4116M
	Coolant temperature sensor, location/task/design/function		GF07.04-P-5026M
	ETC control unit, location/task	Selector lever position information P/N and drive position engaged. Transmission 722.6	GF27.19-P-4012G
