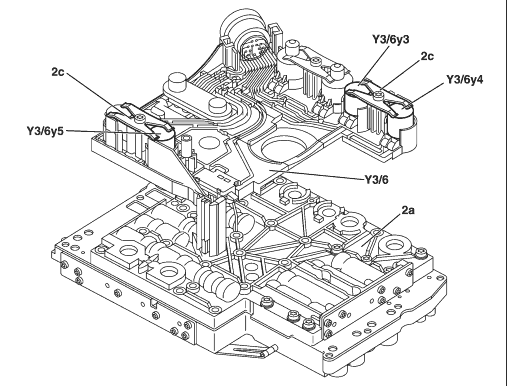

2c Left spring
Y3/6 Electric control unit
Y3/6y3 1-2 and 4-5 shift solenoid valve
Y3/6y4 3-4 shift solenoid valve
Y3/6y5 2-3 shift solenoid valve
| GF27.19-P-4006G | Upshift / downshift solenoid valve, location / task / design / function | 17.6.97 |
| |||
| 2a Valve housing of shift plate
2c Left spring Y3/6 Electric control unit Y3/6y3 1-2 and 4-5 shift solenoid valve Y3/6y4 3-4 shift solenoid valve Y3/6y5 2-3 shift solenoid valve |
| |
| P27.19-2110-06 |
| Upshift/downshift solenoid valve, location | In the shell of the electric control unit and pressed against the shift plate with a spring. | ||
| Upshift/downshift solenoid valve, task | The shift solenoid valves (Y3/6y3, Y3/6y4, Y3/6y5) introduce the sequence of upshifts and downshifts in the shift plate. | ||
| Upshift/downshift solenoid valve, design | GF27.19-P-4006-03G | ||
| Upshift/downshift solenoid valve, function | GF27.19-P-4006-04G |
