GF27.19-P-5110G

GF27.19-P-5110G

Modulating pressure regulating solenoid valve, location / task / design / function

17.6.97

TRANSMISSION 722.6

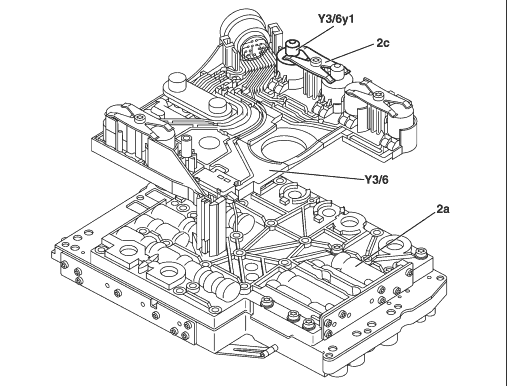

2a Valve housing of shift plate
2c Left spring
Y3/6 Electric control unit
Y3/6y1 Modulating pressure control solenoid valve

P27.19-2112-06

Modulating pressure regulating solenoid valve, location In the supporting body of the electrical control unit (Y3/6) and pressed against the valve housing of the shift plate (2a) by means of a leaf spring.

Modulating pressure regulating solenoid valve, task To control the modulating pressure depending on the constantly changing operating conditions such as load/gear changes.

Modulating pressure regulating solenoid valve, design GF27.19-P-5110-03G

Modulating pressure regulating solenoid valve, function The modulating pressure regulating solenoid valve (Y3/6y1) assigns a proportional pressure to the current which is controlled by the ETC control module (N15/3) according to the load.

2a Valve housing of shift plate 2c Left spring Y3/6 Electric control unit Y3/6y1 Modulating pressure control solenoid valve
		P27.19-2112-06

Modulating pressure regulating solenoid valve, location	In the supporting body of the electrical control unit (Y3/6) and pressed against the valve housing of the shift plate (2a) by means of a leaf spring.
Modulating pressure regulating solenoid valve, task	To control the modulating pressure depending on the constantly changing operating conditions such as load/gear changes.
Modulating pressure regulating solenoid valve, design		GF27.19-P-5110-03G
Modulating pressure regulating solenoid valve, function	The modulating pressure regulating solenoid valve (Y3/6y1) assigns a proportional pressure to the current which is controlled by the ETC control module (N15/3) according to the load.
