GF27.19-P-5111-01A

Control solenoid valve, task

Transmission 722.9 in models 171.4, 203, 209, 211, 215, 219, 220, 230 Working pressure control solenoid valve

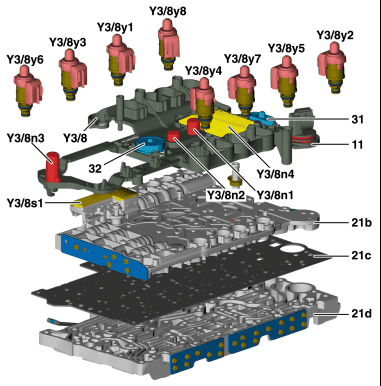

Y3/8 Electric control unit (VGS) Y3/8y1 Working pressure control solenoid valve (VGS)
		P27.60-2471-82

The working pressure control solenoid valve (VGS) (Y3/8y1) is actuated by the fully integrated transmission control (VGS) control unit (Y3/8n4) and influences the position of the working pressure regulating valve. The working pressure depends on the regulating valve position and thus on the geometry of the working pressure regulating valve.

The working pressure control solenoid valve (VGS) (Y3/8y1) has a falling characteristic. This means that the oil pressure applied in the working pressure regulating valve reduces as the actuating current increases. In limp-home mode of the fully integrated transmission control (VGS) all the control solenoid valves are de-energized. The working pressure control solenoid valve (VGS) (Y3/8y1) thus supplies the maximum pressure.
