GF27.19-P-5112G

GF27.19-P-5112G

Location / task / design / function of PWM solenoid valve, torque converter lockup clutch

17.6.97

TRANSMISSION 722.6

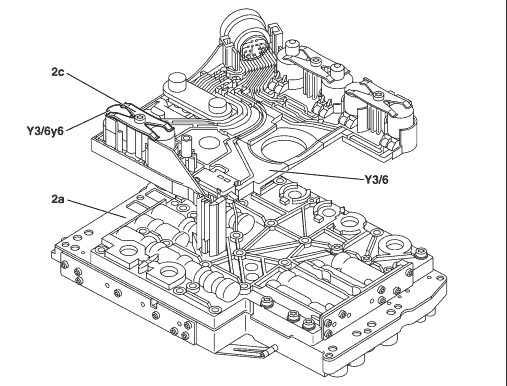

2a Valve housing of shift plate
2c Left spring
Y3/6 Electric control unit
Y3/6y6 Torque converter lockup PWM solenoid valve

P27.19-2111-06

Torque converter lockup clutch PWM solenoid valve, location In the supporting body of the electrical control unit (Y3/6) and pressed against the valve housing of the shift plate (2a) by means of a leaf spring (2c).

Torque converter lockup clutch PWM solenoid valve, task The PWM solenoid valve for the torque converter lockup (Y3/6y6) controls the pressure for the torque converter lockup clutch.

Torque converter lockup clutch PWM solenoid valve, design GF27.19-P-5112-03G

Torque converter lockup clutch PWM solenoid valve, function It converts a pulse-width-modulated current actuated by the ETC control module (N15/3) into the corresponding hydraulic pressure KÜB (p-S/KÜB).

2a Valve housing of shift plate 2c Left spring Y3/6 Electric control unit Y3/6y6 Torque converter lockup PWM solenoid valve
		P27.19-2111-06

Torque converter lockup clutch PWM solenoid valve, location	In the supporting body of the electrical control unit (Y3/6) and pressed against the valve housing of the shift plate (2a) by means of a leaf spring (2c).
Torque converter lockup clutch PWM solenoid valve, task	The PWM solenoid valve for the torque converter lockup (Y3/6y6) controls the pressure for the torque converter lockup clutch.
Torque converter lockup clutch PWM solenoid valve, design		GF27.19-P-5112-03G
Torque converter lockup clutch PWM solenoid valve, function	It converts a pulse-width-modulated current actuated by the ETC control module (N15/3) into the corresponding hydraulic pressure KÜB (p-S/KÜB).
