55/3 Fuel pressure valve (4.1 bar)
55/4 Splash bowl
75 Fuel tank
B4 Fuel level sensor
M3/1 Intank fuel pump
| GF47.10-P-3000KB | Fuel tank, location/design/function | 22.1.04 |
| |||||
| Shown on model 215, 220

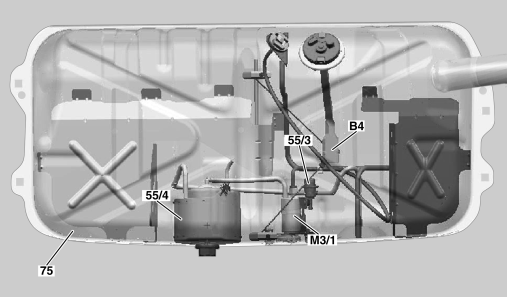

55/3 Fuel pressure valve (4.1 bar) 55/4 Splash bowl 75 Fuel tank B4 Fuel level sensor M3/1 Intank fuel pump |
| |
| P47.10-2146-05 |
| Fuel tank position | The fuel tank is located in the trunk above the rear axle. | ||
| Fuel tank design | The fuel tank is made out of sheet steel. Both halves of the tank are welded together.
The components in the fuel tank (e.g. the intank fuel pump) cannot be removed. Replace complete fuel tank! |
||
| Fuel tank function | GF47.10-P-3000-01KB |
