Y58/2 Left purge control valve (engine 120)
Y58/3 Right purge control valve (engine 120)
B to activated charcoal canister
C to engine (identification "engine inspection")
| GF47.30-P-4030L | Purge control valve, location/task/design/function | 10.7.96 |
| |||||||

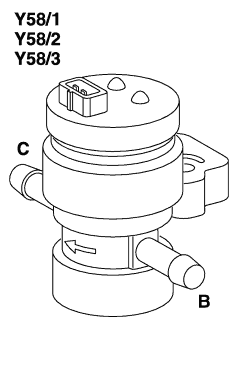

| Y58/1 Purge control valve
Y58/2 Left purge control valve (engine 120) Y58/3 Right purge control valve (engine 120) B to activated charcoal canister C to engine (identification "engine inspection") |
| |
| P47.30-0268-03 |
| Purge control valve position | GF47.30-P-4030-01L | ||
| Purge control valve task | Opening and closing the connecting line between the activated charcoal canister and the intake manifold. | ||
| Purge control valve design | Electric switchover valve with two line terminals and one 2-pin plug connection. | ||
| Purge control valve function | GF47.30-P-4030-02KE |
