MODEL   215

P80.20-2042-09

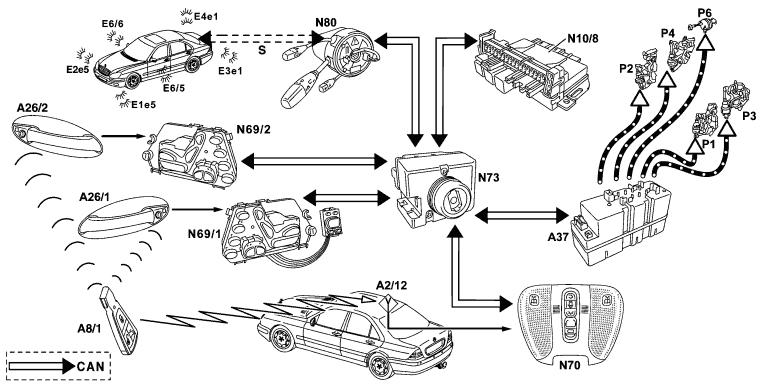

Unlocking with remote control key, function illustrated on model 220 A2/12 Top rear window antenna amplifier A8/1 Remote control key A26/1 Left front door IR receiver A26/2 Right front door IR receiver A37 PSE control module (combined) CAN Controller area network E1e5 Front left turn signal lamp E2e5 Front right turn signal lamp E3e1 Rear left turn signal lamp

E4e1 Rear right turn signal lamp E6/5 Left exterior mirror turn signal lamp E6/6 Right exterior mirror turn signal lamp N10/8 Rear SAM control module N69/1 Left front door control module N69/2 Right front door control module N70 Overhead control panel control module N73 Electronic ignition switch control module N80 Jacket tube module

P1 Pneumatic actuator, driver's door P2 Pneumatic actuator, passenger door P3 Pneumatic actuator, left rear door (only on model 220) P4 Pneumatic actuator, right rear door (only on model 220) P6 Pneumatic actuator, tank flap S Actuation of turn signal lamps via corresponding control modules

Remote control key set to "selective unlocking" When the "Unlock vehicle" button is pressed once, the remote control key sends a radio frequency and infrared signal to the corresponding receivers in the vehicle. These receive the signal and transmit the information via the CAN bus to the electronic ignition/starter switch control module (N73). The electronic ignition/starter switch control module (N73) checks the access authorization. If the access authorization is valid then the electronic ignition/starter switch control module (N73) sends the command "selective unlocking" via the CAN bus. The PSE control module (combined) (A37) receives the command and unlocks the vehicle pneumatically. If the vehicle was locked previously, the PSE control module (combined) (A37) unlocks selectively, i.e. only the driver's door and the tank flap. If the driver's door and the tank flap are already unlocked and another unlocking operation is requested the

PSE control module (combined) (A37) unlocks the vehicle universally so that the remaining doors are also unlocked. The remote trunk release switch (S15/1) is enabled. Remote control key set to "universal unlocking" When the "Unlock vehicle" button is pressed once the remote control key sends a radio frequency and infrared signal to the corresponding receivers in the vehicle. If the access authorization is valid, the electronic ignition/starter switch control module (N73) sends the command "universal unlocking" via the CAN bus. The PSE control module (combined) (A37) receives the command and unlocks all the doors and the tank flap pneumatically. The remote trunk release switch (S15/1) is enabled. The interior switches are released when the vehicle is unlocked universally or selectively with the remote control key.

	Locking/unlocking pneumatically, function		GF80.20-P-4016S
	Locking with remote control key, function		GF80.20-P-3005S
	Relocking, function		GF80.20-P-4012S
	Central locking emergency opening, function		GF80.20-P-4013S
	Automatic locking, function		GF80.20-P-4009S
	Locking/unlocking vehicle with interior switch, function		GF80.20-P-3009S
	Opening trunk lid with interior switch, function		GF80.20-P-3012S
	Transmitting remote control signal, function		GF80.20-P-4010S
	Receiving remote control signal, function		GF80.20-P-4011S
	Pneumatic system equipment (PSE), combined functions, location/purpose/design/function		GF80.20-P-4106S
	Electronic ignition switch (EIS) control module, location/purpose/design/function		GF80.57-P-4102S
