R12/1 Emergency tensioning retractor squib, driver side
R12/2 Emergency tensioning retractor squib, front passenger-side
| GF91.40-P-4000C | Front emergency tensioning retractor, location/task/design/function | 1.4.99 |
| |||

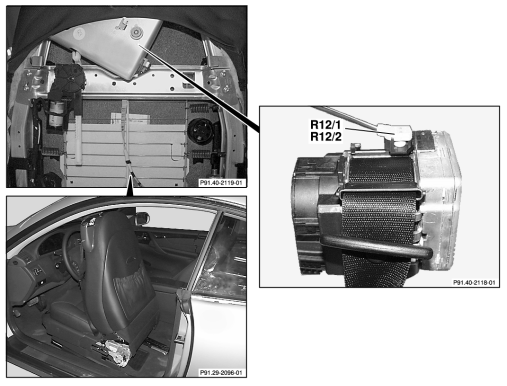

| Arrangement of components
R12/1 Emergency tensioning retractor squib, driver side R12/2 Emergency tensioning retractor squib, front passenger-side |
| |
| P91.40-2120-06 |
| Front emergency belt tensioner - task | The emergency tensioning retractor eliminates seat belt slack in the event of a crash (front and rear collision) and prevents the seat belt's film reel effect.
The close-fitting seat belt means that vehicle occupants are exposed to the deceleration forces acting on the body at an earlier stage. |
||
| Front emergency tensioning retractor, design | GF91.40-P-4000-02S | ||
| Front emergency belt tensioner - function | GF91.40-P-4000-03S |
