A76 Left front reversible emergency tensioning retractor
A76/1 Right front reversible emergency tensioning retractor
| GF91.40-P-4000N | Front emergency tensioning retractor, location/task/design/function | 14.6.02 |
| |||

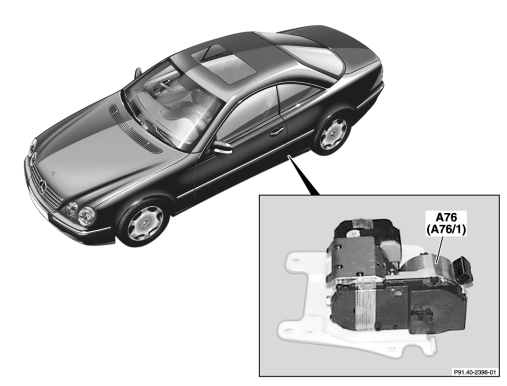

| Driver and passenger emergency tensioning retractors
A76 Left front reversible emergency tensioning retractor A76/1 Right front reversible emergency tensioning retractor |
| |
| P91.40-2399-06 |
| Front emergency belt tensioner, location | The driver ETR [GUS] ignition squib (R12/1) and passenger ETR [GUS] ignition squib (R12/2) are located at the bottom of the respective B-pillar behind the plastic lining. | ||
| Front emergency belt tensioner - task | The emergency tensioning retractor serves to take up the slack in the seat belt in the event of a crash (frontal or rear end collision) and prevents the seat belt's film reel effect.
The close-fitting seat belt means that vehicle occupants are exposed to the deceleration forces acting on the body at an earlier stage. |
||
| Front emergency tensioning retractor, design | GF91.40-P-4000-02T | ||
| Front emergency belt tensioner - function | GF91.40-P-4000-03T |
