GF91.40-P-4001B

GF91.40-P-4001B

Rear emergency tensioning retractor, location/purpose/design/function

1.4.99

MODEL 215

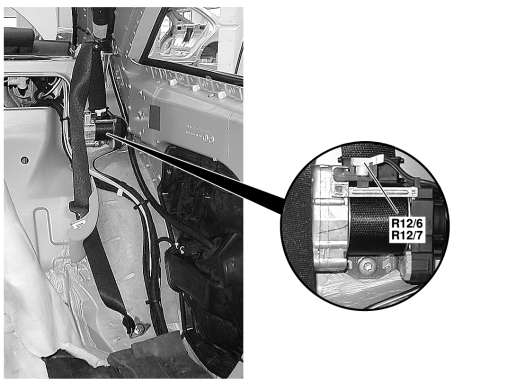

R12/6 Left rear ETR ignition squib
R12/7 Right rear ETR ignition squib

P91.40-2122-06

Rear emergency tensioning retractor, purpose The emergency tensioning retractor eliminates the belt slack in the event of a collision (front and rear end collision) and prevents the film winding effect of the seatbelt.
The tight seatbelt ensures that the vehicle passenger decelerates at nearly the same rate as the vehicle.

Rear emergency tensioning retractor, design GF91.40-P-4000-02S

Rear emergency tensioning retractor, function GF91.40-P-4000-03S

R12/6 Left rear ETR ignition squib R12/7 Right rear ETR ignition squib
		P91.40-2122-06

Rear emergency tensioning retractor, purpose	The emergency tensioning retractor eliminates the belt slack in the event of a collision (front and rear end collision) and prevents the film winding effect of the seatbelt. The tight seatbelt ensures that the vehicle passenger decelerates at nearly the same rate as the vehicle.
Rear emergency tensioning retractor, design		GF91.40-P-4000-02S
Rear emergency tensioning retractor, function		GF91.40-P-4000-03S
