| GF27.19-P-5111N | Control solenoid valve, location/task/design/function | 1.12.03 |
| |||
|

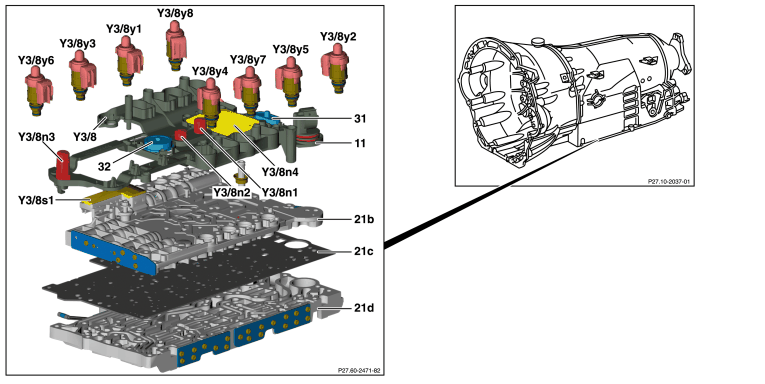

| P27.60-2530-79 |
| Y3/8 Electric control unit (VGS)
Y3/8y1 Working pressure control solenoid valve (VGS) Y3/8y2 K1 clutch control solenoid valve (VGS) |
Y3/8y3 K2 clutch control solenoid valve (VGS)
Y3/8y4 K3 Clutch control solenoid valve (VGS) Y3/8y5 B1 brake control solenoid valve (VGS) |
Y3/8y6 B2 brake control solenoid valve (VGS)
Y3/8y7 B3 brake control solenoid valve (VGS) Y3/8y8 Torque converter lockup clutch control solenoid valve (VGS) |
| Control solenoid valve, location | The control solenoid valves are mounted on the electric control unit (VGS) (Y3/8). | ||
| Control solenoid valve, task | Working pressure control solenoid valve | GF27.19-P-5111-01A | |
| Clutch control solenoid valve K1 | GF27.19-P-5111-01B | ||
| Clutch control solenoid valve K2 | GF27.19-P-5111-01C | ||
| Clutch control solenoid valve K3 | GF27.19-P-5111-01D | ||
| Brake control solenoid valve B1 | GF27.19-P-5111-01E | ||
| Brake control solenoid valve B2 | GF27.19-P-5111-01F | ||
| Brake control solenoid valve B3 | GF27.19-P-5111-01G | ||
| Torque converter lockup clutch control solenoid valve | GF27.19-P-5111-01H | ||
| Control solenoid valve, design | With the control solenoid valves used the proportional solenoids convert the electric signals of the fully integrated transmission control (VGS) control unit (Y3/8n4). The float needles can also be moved into intermediate positions as a result. | ||
| Control solenoid valve, function | The control solenoid valves assign a proportional pressure to a current regulated by the fully integrated transmission control (VGS) control unit (Y3/8n4). |
